Custom Glass Railings in Victoria, BC — Architectural Precision for the Capital’s Coastal Homes
Where Heritage Meets Modern: Why Victoria’s Railing Market Demands More Than Aluminum Kits
Pre-1980 Housing
64%
Senior Population
23.2%
Wind Pressure
220 Pa
Victoria is not a typical BC railing market. The architectural DNA runs from Victorian-era heritage homes in James Bay to mid-century apartments in Fairfield to contemporary infill townhomes in Fernwood. Strata balconies outnumber suburban decks. Replacement guards outnumber new installations. Nearly every project involves a conversation about what the building looked like before and what it should look like after.
The railing companies serving this market work almost exclusively in aluminum.
Aluminum kit systems are competent for straightforward installations, but they cannot address the custom angles, heritage-sensitive detailing, mixed-material combinations, or P.Eng.-stamped strata documentation that Victoria’s more complex projects require.
Architectural intent matched with custom fabrication respecting heritage details.
Custom Fabrication:LOUEI Metal Arts is a custom steel and glass fabricator. We design, weld, powder coat, and install glass railings that match architectural intent — whether that’s a frameless glass guard on a waterfront Gonzales terrace, a heritage-compatible stair rail for a James Bay restoration, or a strata-wide balcony railing replacement with sealed engineering drawings and Letters of Assurance. Below: how each system serves Victoria’s specific project types, what the BC Building Code requires, and what “custom fabrication” actually means for the capital’s coastal conditions.
Glass Railings for Victoria’s Light-Hungry, View-Conscious Architecture
Victoria receives more overcast winter days than most BC cities. The psychological impact is measurable: architects and homeowners prioritize maximum natural light penetration in every design decision.
A glass railing passes light through — aluminum pickets and steel cables do not. On a Victoria balcony or stairway where winter daylight is precious, the difference between transparent glass and opaque pickets directly affects how the space feels from November through March.
This light-transmission advantage is why glass railings dominate Victoria’s premium residential and multi-family markets. The emerging “Midimalism” design trend in Victoria — blending mid-century warmth with Scandinavian restraint — calls for materials that feel refined without visual weight. Glass delivers exactly that: clean sight-lines, warm-toned hardware (brass-effect, matte black, or brushed stainless), and an open feel that makes compact urban spaces read larger.
Four Glass Systems for Victoria’s Project Diversity
Post-and-Clamp
Victoria’s most versatile system — works for strata balcony replacements and townhome terraces where consistency matters.
Standoff (Point)
Ideal for interior stair guards in open-concept renovations and heritage stairwell upgrades.
Spigot / Mini-Post
The “Midimalism” match for Fairfield and Oak Bay decks — minimal stainless hardware lets the architectural restraint speak, while 12mm tempered panels maintain full Strait of Juan de Fuca sightlines.

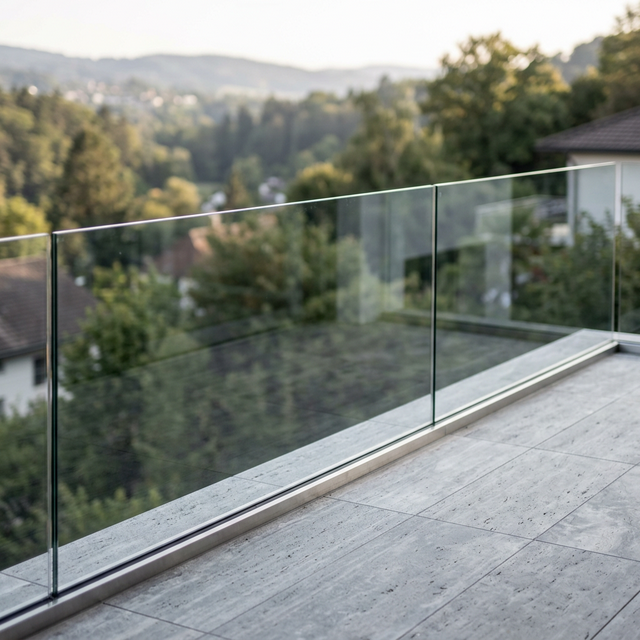

Base-Shoe Channel
For Gonzales, Dallas Road, and Cadboro Bay waterfront — where unbroken Strait of Juan de Fuca views define the property’s value. Zero hardware above deck level means nothing stands between your living space and the Olympic Mountains horizon.
Strata Balcony Replacements
(Victoria’s Hidden Market)
Victoria has more apartment units (34,500+) than single-detached homes. Many 40–60-year-old buildings have aluminum or painted steel balcony railings failing code or reaching end-of-life.
| Strata Requirements | Standard Vendor | LOUEI Metal Arts Standard |
|---|---|---|
| Engineering | Extra cost / 3rd party | Sealed P.Eng. Included |
| Wind Load Docs | Often omitted | Calibrated to 220 Pa |
| Assurance (Schedules) | Client responsible | Full documentation package |
Coastal Durability
Without Visual Weight
Victoria’s climate data reads: 825mm annual precipitation, moisture index 0.98, 220 Pa driving rain wind pressure. Salt air from the Strait of Juan de Fuca reaches properties across the city.
LOUEI Metal Arts specifies 316 marine-grade stainless steel hardware for all Victoria installations. Powder-coated steel frames use factory-applied AAMA 2605-rated finishes. Glass panels are 12mm tempered with edge polishing that prevents micro-chip corrosion initiation.
When strata councils inspect aging balcony railings, surface degradation on 304 SS hardware is the first visible failure indicator. Depreciation reports flag the symptoms: corroded fasteners, stained glass-to-metal connections, pitting at base plates where moisture pools. These are all consequences of specifying 304 instead of 316 in Victoria's coastal environment. LOUEI Metal Arts' 316 SS specification prevents these failure modes entirely.
Handrails for Victoria’s Aging Housing Stock and Senior Population
23.2% of Victoria’s population is 65 or older. 64% of the city’s housing was built before 1980 — before modern accessibility standards existed. The combination creates Victoria’s largest retrofit category: stair handrails and accessible graspable rails for existing homes, apartment common areas, and commercial buildings where current code now requires continuous graspability through landings.
With 64% of Victoria’s housing built before 1980, retrofitting handrails onto century-old James Bay or Rockland stairways means adapting to non-standard tread depths, irregular riser heights, and wall clearances that don’t match modern assumptions. BC Building Code requirements still apply: handrails on exterior stairs with 4+ risers, graspable profile 30–43mm, height 865–965mm, 50mm wall clearance, continuous through landings without interruption. Custom fabrication is the only way to meet code on century-old stair geometry.
For heritage homes in James Bay and Rockland where the existing stair geometry can’t change, our custom-fabricated stainless steel and powder-coated handrails adapt to the building — not the other way around.
See our accessibility-compliant handrail options
Picket Railings for Heritage-Compatible Projects
Not every Victoria project calls for glass. Heritage renovation work in the Old Town district, family homes in Saanich, and rental property upgrades throughout the city often need a railing system that delivers code compliance, clean lines, and value without the premium of glass.
Our powder-coated steel picket railings are welded to CWB standards in any RAL colour — including the warm heritage tones (deep greens, charcoals, matte blacks) that Victoria’s heritage advisory process favours over bright aluminum finishes.
View our powder-coated picket railing designs →Cable Railings for Contemporary Waterfront
Along Dallas Road, Cadboro Bay, and the Songhees waterfront, the architectural language is industrial-modern — not heritage. Our ClearView Stainless 316 cable railing system is the style choice for these properties — a contemporary option that matches the intent, not just a cheaper-than-glass fallback.
When replacing old balcony railings on Victoria’s aging building stock, cable systems meet current 2024 code — not the original construction-era code. This makes cable a viable modern upgrade for strata buildings seeking both aesthetic improvement and code compliance in a single project. The marine-grade 316 SS specification handles Victoria’s salt-air exposure without surface degradation.
Learn about our ClearView cable railing systems →A Typical Victoria Railing Installation
The following is a representative scenario. It is not a completed case study.
Property
1970s-era strata apartment building in Fairfield, 4 storeys, 32 units. Original painted steel balcony railings showing corrosion and code non-compliance (heights below current 1,070mm standard).
Scope
Full balcony railing replacement across all 32 units. Post-and-clamp glass system selected for consistency, value, and view preservation of ocean views toward the Strait of Juan de Fuca.
Documentation
P.Eng.-sealed structural drawings with wind-load calculations for 220 Pa exposure. Letters of Assurance. Strata council approval package including product specs, colour samples, installation schedule, and noise/disruption plan.
Core Challenges
- ✓ 32-unit consistency requires precision shop fabrication — field-adjusted kit parts create unit-to-unit variation.
- ✓ Original balcony slab conditions require structural assessment before mounting.
- ✓ Resident disruption must be minimized with phased installation over several weeks.
- ✓ Ferry logistics and staging coordination from mainland fabrication studio.
Railing Permit and Code Requirements in Victoria
BC Building Code 2024 applies: Victoria explicitly confirms the BCBC 2024 is in effect for all new permit applications. The city enforces code rigorously, particularly for strata and multi-family work.
Guard Heights & Rules
When replacing balcony railings on older Victoria buildings, the new system must meet 2024 code — not the code from original construction. Many pre-1980 balcony guards were installed at heights that no longer comply. Current requirements: 1,070mm (42″) for surfaces more than 1,800mm above grade, 900mm (36″) for 600–1,800mm. No opening allowing a 100mm sphere to pass. Guards must resist 1.0 kN concentrated point load.
Strata Replacements
When strata councils replace balcony railings, the new system must meet current code — not the code in effect when the building was originally constructed, often triggering full-building railing upgrades in Victoria’s older stock.
Glass Guards Code Standard
Glass guards require tempered or laminated safety glass per CAN/CGSB-12.1 with redundant load paths. P.Eng. documentation is what strata councils need for their building envelope consultant review — for 32-unit balcony replacements on 1970s buildings, the engineering package must include wind-load calculations calibrated to Victoria’s 220 Pa exposure AND structural assessment of existing concrete slab conditions.
Frequently Asked Questions
Railings in Victoria
Q: Can LOUEI Metal Arts service Victoria from the mainland?
+
Yes. We fabricate in our Coquitlam studio and transport finished components via BC Ferries to Victoria. On-site installation typically takes 1–5 days depending on scope. Shop fabrication means higher precision than field assembly — every component arrives powder-coated, pre-drilled, and ready to mount. We schedule Island installations in multi-day blocks to optimize travel costs for clients.
Q: Does LOUEI Metal Arts provide strata approval documentation for Victoria balcony replacements?
+
Yes. Every strata project includes a complete documentation package: P.Eng.-sealed structural drawings, wind-load calculations calibrated to Victoria’s 220 Pa driving rain wind pressure, product specifications, installation schedule, and Letters of Assurance. We prepare the package for strata council submission and coordinate with building envelope engineers when required.
Q: What railing materials resist Victoria’s coastal salt air?
+
Victoria’s proximity to the Strait of Juan de Fuca and the open Pacific creates genuine marine exposure. We specify 316 marine-grade stainless steel hardware (2–4% molybdenum for chloride resistance) and AAMA 2605-rated UV-resistant powder coating. Standard aluminum and 304 stainless develop surface degradation within 2–3 years in Victoria’s salt-air environment.
Q: How are glass railings priced for Victoria installations?
+
Glass railing pricing depends on the system selected. Post-and-clamp systems are generally the most cost-effective for strata runs, while base-shoe frameless systems represent a premium investment for waterfront applications. Strata-wide balcony replacements receive project pricing scaled to unit count. Detailed quotes include measurement, custom fabrication, ferry transport, and phased installation scheduling.
Q: Can glass railings match the character of Victoria’s heritage homes?
+
Yes. Our standoff and spigot glass systems use minimal hardware that doesn’t compete with period architectural details. For heritage-adjacent projects, we offer powder coating in warm heritage-compatible tones (deep greens, charcoals, heritage blacks) rather than bright aluminum finishes. The glass itself is style-neutral — transparent panels let the building’s original character remain the visual focus.
Q: Does LOUEI Metal Arts install accessible handrails for Victoria’s older buildings?
+
Yes. With 23.2% of Victoria’s population over 65 and most housing built before modern accessibility codes, handrail retrofits are one of our most common Island projects. Our stainless steel and powder-coated handrails meet BC Building Code graspability requirements (30–43mm profile, 865–965mm height, continuous through landings) and custom-fit to existing stair geometry without structural modification.
Get a Free Consultation for Your Victoria Project
Whether you’re a homeowner upgrading a waterfront deck in Gonzales, a strata council replacing 40-year-old balcony railings, or a custom home builder fitting glass guards into a heritage-sensitive new build — LOUEI Metal Arts delivers custom railing installation with architectural precision and permit-ready documentation.
